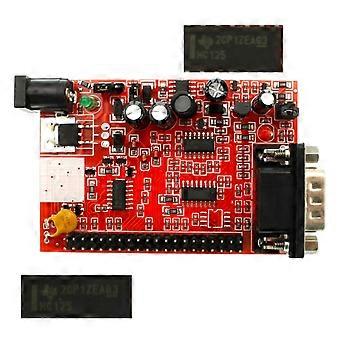

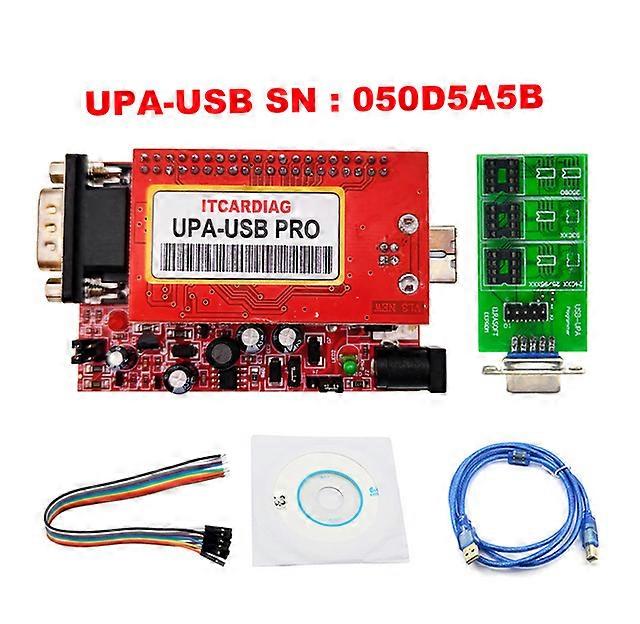

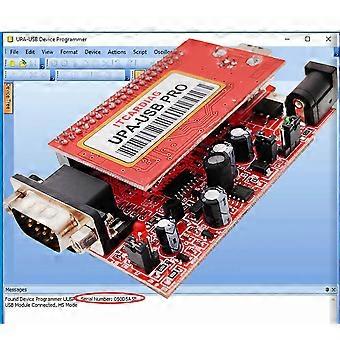

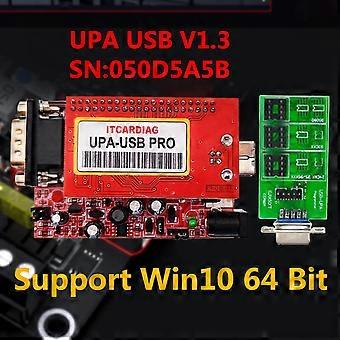

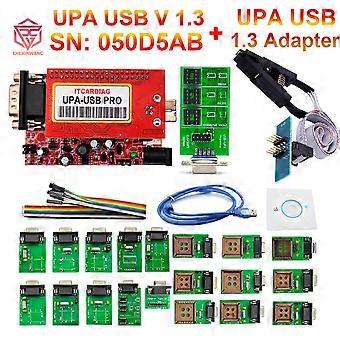

Top 2 Reasons to get EEPROM Adapter For UPA Programmer:1. can work together with UPA USB Programmer V1.32.Can work with xprog-m: when you connect this eeprom adapter with any of CLIP EEPROM DIP-8CON,SOIC-14CON and SOIC-8CON, they could work together with Xprog. Special1.Our UPA USB Programmer is Best quality SN 050D5A5B.2.our upa 100% support win10 64 bit operating system.Top 4 Reasons to Get the UPA USB Programmer1. Language: English.2. Hardware Version: V20143. Software Vesion: V1.34. Support Nec Function, but Has No NEC Adapter in the PackageUPA USB Programmer Description: New Upa-usb is the full set with all adapters, The main Device can be directly connected to the Elrasoft.com UUSP (UPA-USB Serial Programmer) or by an optional DB9 male / female 1:1 extension cable. It's equipped with an 40pin ZIF Socket for all narrow and wide DIP / DIL devices as well as with a 16 pin SOIC ZIF (150mil, narrow) socket to cover most commonly used devices.Device configuration is done over special config keys which make the work convenient and safe compared to wiring up all manually.Additional packages can be covered by commonly available Adapters plugged into the 40 pin ZIF socket.The main Device further includes a 10 pin ISP connector where the included ISP Adapters can be connected using a standard 1:1 flatribbon cable (included). The included PLCC ISP Adapters are to be put directly over the soldered chip of the target device making the work convenient and safe compared to soldering or using clips connecting up all manually. (Power from the UUSP to the ISP target can be enabled or disabled by a jumper next to the 10 pin ISP connector) UPA-USB Device Programmer V1.3 Update Info:Added MC9S12HY64/HA32 supportAdded Serial Flash memory support: A25L512/010/020/040/080/016/032, SST25VF512A/010A/020B/040B/080B/016B/032B, S25FL004A/008A/016A/032A/064AAdded 24C1024, 24C1025 supportAdded Bulk erase data memory to PICs 16F913-7/946, 12F629/675Added script function GetPageAdded script function AutoBaudRateDevice (hc08 devices only)Added script function GetProgrammerFrameChildCtrl( AChildCtrlName: string): TControlAdded script function EnablePicMemoryAreas ( AProgram, AID, AConfig, ACalibration, AEEPROM: boolean ): boolean;Fixed bug with script functions ProgramDevice, ReadDevice ... when used with PICsFixed bug with SetHC08SecurityBytes (SecBytes: string) functionFixed bug with 68hc11 reading if Oscillator is not set to AutoUpdated script example filesThe software is digitally signedUSB driver upausb.sys is digitally signedEEpromsSimply connect the mainboard to the UPA programmer directly or by using a DB9 male / female extension cable (1:1). Insert the correct config key into the slot of the mainboard and start programming either via the ZIF or SOIC Socket. You can also use the included DIL to 10pin Flat-ribbon header, put it inside the ZIF socket and wire up an SOIC clip or clamps for ISP use from there.Motorola MCU'sPick the Adapter you want to use, attach the flat cable to the Adapter (PIN1 is always indicated, on both the cable and also the Adapter) and also to the main board's 10pin ISP connector. Select the VCC supply source by the jumper on the mainboard next to the ISP connector (on = target supplied from upa, off = target got own supply). Slide the Adapter over the soldered PLCC MCU on the target PCB. (No soldering, no pinout reviewing, no pin counting, saves lots of time and hale and let's you make your job faster, precise and easier)Once your workshop is equipped with our Adapter Set you will have a all new UPA Experience.STMicroelectronics ST62*:ST6240, ST6245, ST6249NSC CR16*: CR16HCS5(9), CR16MCS5(9), CR16MES5(9), CR16MFS5(9), CR16MCT5/9, CR16HCT5/9Motorola HC05*: MC68HC05B6, MC68HC05B8, MC68HC05B16, MC68HC705B16, MC68HC05B32, MC68HC05E6, MC68HC705E6, MC68HC05H12, MC68HC05L28, MC68HC05P3, MC68HC705P3*, MC68HC05X16, MC68HC05X32Motorola HC08*: MC68HC08AS20, MC68HC08AS32, MC68HC08AS60, MC68HC08AZ32, MC68HC(9)08AZ32A, MC68HC908AZ60, MC68HC908AZ60AMotorola HC11*: MC68HC11A1, MC68HC11A8, MC68HC11E9, MC68HC11EA9, MC68HC11E20, MC68HC11F1, MC68HC11K4, MC68HC11KA2, MC68HC11KA4, MC68HC11KG4, MC68HC11KS2, MC68HC11KS8, MC68HC11L6, MC68HC11P2, MC68HC11PA8, MC68HC11PH8Motorola HC12*: MC68HC912B32, MC68HC912BE32, MC68HC912D60, MC68HC912D60A, MC68HC912DC128A, MC68HC912DG128, MC68HC912DG128AMotorola HCS12*: MC9S12D64, MC9S12A128, MC9S12DG128, MC9S12DG256, MC9S12H128, MC9S12H256Atmel 8051 Architecture: AT89S51, AT89S52, AT89S53, AT89S8252, AT89S8253Atmel AVR 8-Bit Risk: AT90S1200, AT90S2313, AT90S2323, AT90S2333, AT90S2343, AT90S4433, AT90S4434, AT90S8515, AT90S8535, ATmega8, ATmega16, ATmega161, ATmega162, ATmega163, ATmega323, ATmega64, ATmega103, ATmega128, ATtiny12, ATtiny15, ATtiny2313Microchip PIC12: PIC12F508, PIC12F509, PIC12F629, PIC12F675Microchip PIC16: PIC16F627(A), PIC16F628(A), PIC16F648A, PIC16F72, PIC16F73, PIC16F74, PIC16F76, PIC16F77, PIC16F818, PIC16F819, PIC16F83, PIC16F84(A), PIC16F870, PIC16F871, P
