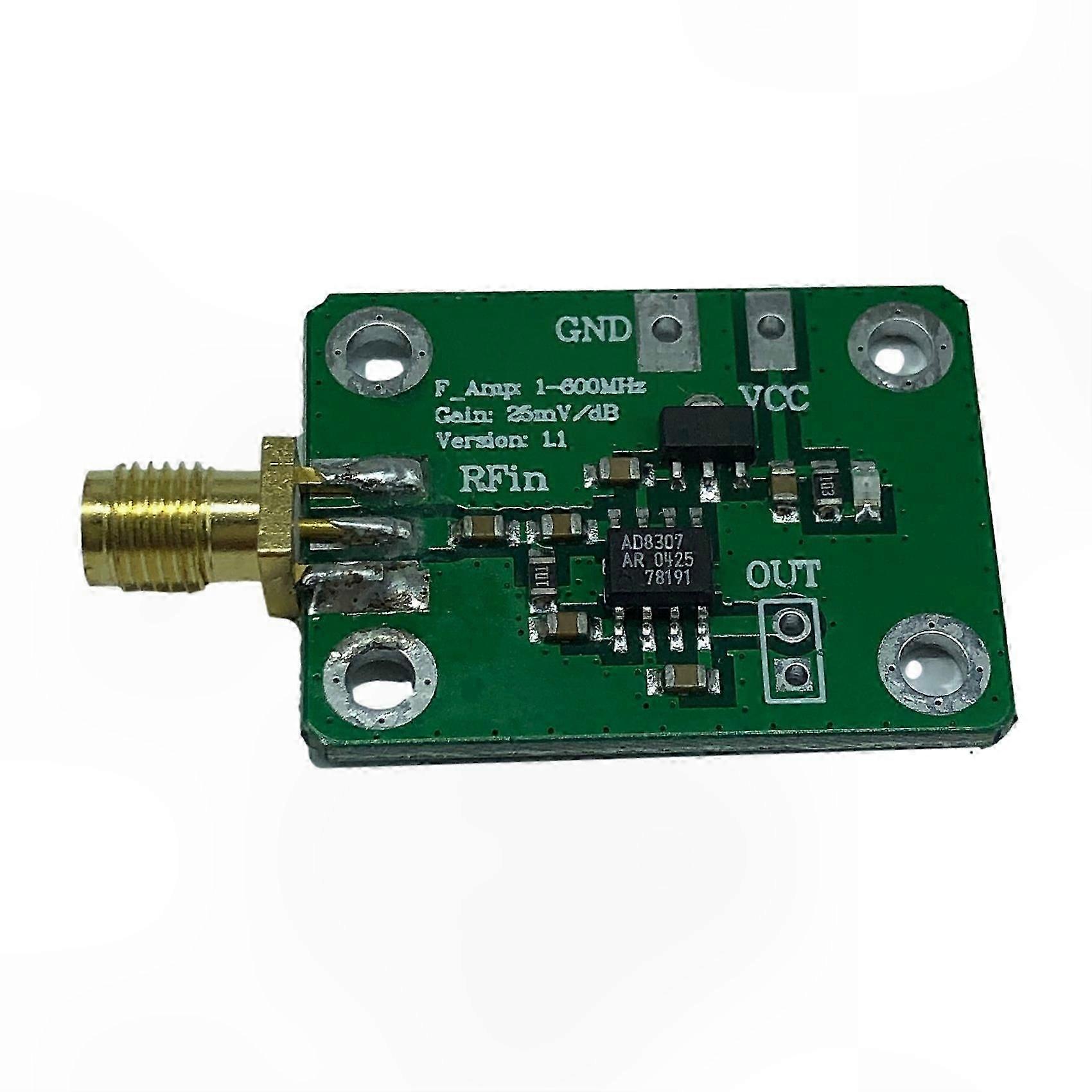

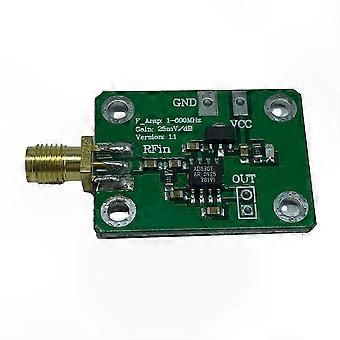

Logarithmic RF Power Meter Detector for 1-600MHz Frequency Range with Power Detection Capability

$14.95
+ $22.99 Shipping

Logarithmic RF Power Meter Detector for 1-600MHz Frequency Range with Power Detection Capability

  • Brand: Unbranded
  • product image
  • product image
  • product image
  • product image
  • product image
Logarithmic RF Power Meter Detector for 1-600MHz Frequency Range with Power Detection Capability

Logarithmic RF Power Meter Detector for 1-600MHz Frequency Range with Power Detection Capability

  • Brand: Unbranded
RRP: $41.95
Price: $14.95
You save: $27.00 (64%)
Sold by:
$14.95
+ $22.99 Shipping

In stock

We accept the following payment methods

Description

High stability over the entire temperature range. Complete differential DC-coupled signal path. Used for RF signal power detection with a frequency range of 1 MHz to 600 MHz. Detects RF signals with power levels from -74 dBm to +18 dBm and converts them into a DC voltage output. Output voltage increases proportionally with the amplitude or power of the RF signal, providing a dynamic range of up to 92 dB. Suitable for RF signal detection, signal power measurement, field strength monitoring, automatic gain control, and automatic level control applications. Operating frequency: 1 MHz 600 MHz Measurement range: -74 dBm to +18 dBm Output voltage: 0 2.5 V Detection slope: 25 mV/dBm (typical) Input impedance: 50 ohms Supply voltage: 615 V Type: RF Power Meter Model: AD8307 Color: Green Material: Metal Package Includes: 1 x RF Power Meter Note: The package includes only the items listed above. Other accessories are not included. Note: Slight color variations may occur due to lighting and display differences. Measurement error allowance: 13 cm.
