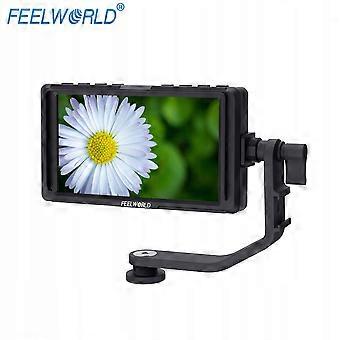

Panel functions Model: F5 Screen size : 5 \ "IPS Resolution: 1920x1080 pixels Dot pitch: 0.0571 (H) x 0.019 (W) mm Screen ratio: 16: 9 Brightness: 450cd / m Contrast: 1000: 1 Backlight: LED Viewing angle: 80 / 80 (L / R) 80 / 80 (U / D) Enter: 1 X HDMI HDMI output: 1 X HDMI HDMI 1 X DC DC OUT 8V output (outer diameter 5.5mm, inner diameter 2.1mm; can power an SLR or mirrorless camera) Audio: Headphone Audio Jack HDMI Input / Output Format 480i / 576i / 480p / 576p 1080i (60 / 59.94 / 50) 720p (60 / 59.94 / 50/30/29 / 25/24 / 23.98) 1080p (60 / 59.94 / 50/30 / 29.97 / 25/24 / 24sF / 23.98 / 23.98sF) < p> 4K UHD 3840 2160p (30 / 29.97 / 25/24 / 23.98), 4096 2160p (24 Hz) Other Specifications Input voltage: DC6 (24 V) Power consumption: 8W Working temperature: -20 C ~ 55 C Storage temperature: -30 C ~ 65 C Installation method: standard holes for 1 / 4-20 quick assembly screws Standalone size: 136Lx75.7Hx25.2D (mm) Weight of a single machine: 142.5g < / p> Function * Brightness histogram * Assisted focusing (with optional red, green, blue 3-color focus colors) * false color * Overexposed zebra pattern prompt (1-100IRE adjustable) * Monochrome display (black & white, red, green, blue) * Scan mode (overscan, underscan) * Morph mode (1.3x, 2.0x, 2.0x mag) * Invert the image (horizontal, vertical, horizontal and vertical) * Image Freeze * Center Mark * Frame Markers (80%, 85%, 90%, 93%, 96%, 2.35: 1) * Scale markers (4: 3, 13: 9, 14: 9, 15: 9, 16: 9, 1.85: 1, 2.35: 1) * Color temperature adjustment * Jiugongge (optional However, the area of the split image can be enlarged to full screen) * Image enlargement (4X, 9X, 16X) * Zoom * peer to peer * Global zoom * Zoom in and out * Zoom left and right Professional monitoring feature 5- Full HD FEELWORLD F5 inch photo monitor can help photographer to better focus, judge shooting condition in real time and get better image and video quality. The F5 small monitor comes with rich functions such as brightness histogram, auxiliary focus, audio column, false color, overexposure prompt, guide frame, deformation mode, etc., which can extend the video recording tools of the current camera and greatly improve the shooting performance quality. Light and compact, still strong The FEELWORLD F5 can be easily mounted on a camera or stabilizer thanks to its sturdy body and compact shape. It's also compact and portable, making it ideal for handling portable, mobile, and crowded live events. At just 5 inches and a low weight of 142.5 g, the F5 is perfect for mounting on the camera without adding extra weight to the camera, allowing it to cope with any shooting environment with ease. Full HD 1920X1080 display The image on the display is clear and delicate, and the image quality is very important! The 5-inch EELWORLD F5 LCD screen has a resolution of 1920x1080 (16: 9) and its pixel density is as high as 440ppi, which provides a clear and sharp image with each lens for better focusing and framing. Thanks to Full HD resolution, crystal-clear details combined with a high brightness of 450 cd / m2, an amazing contrast ratio of 1000: 1 and realistic with colors, images come to life before your eyes. "
