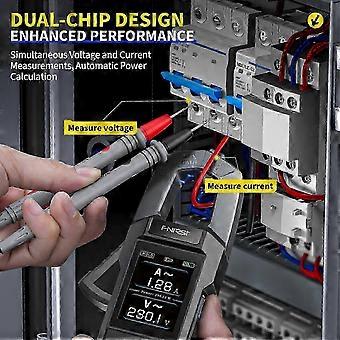

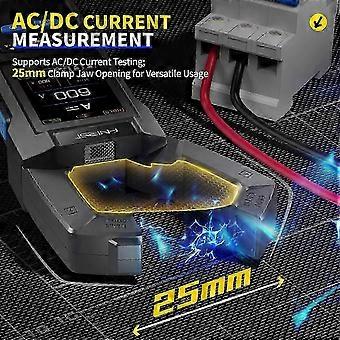

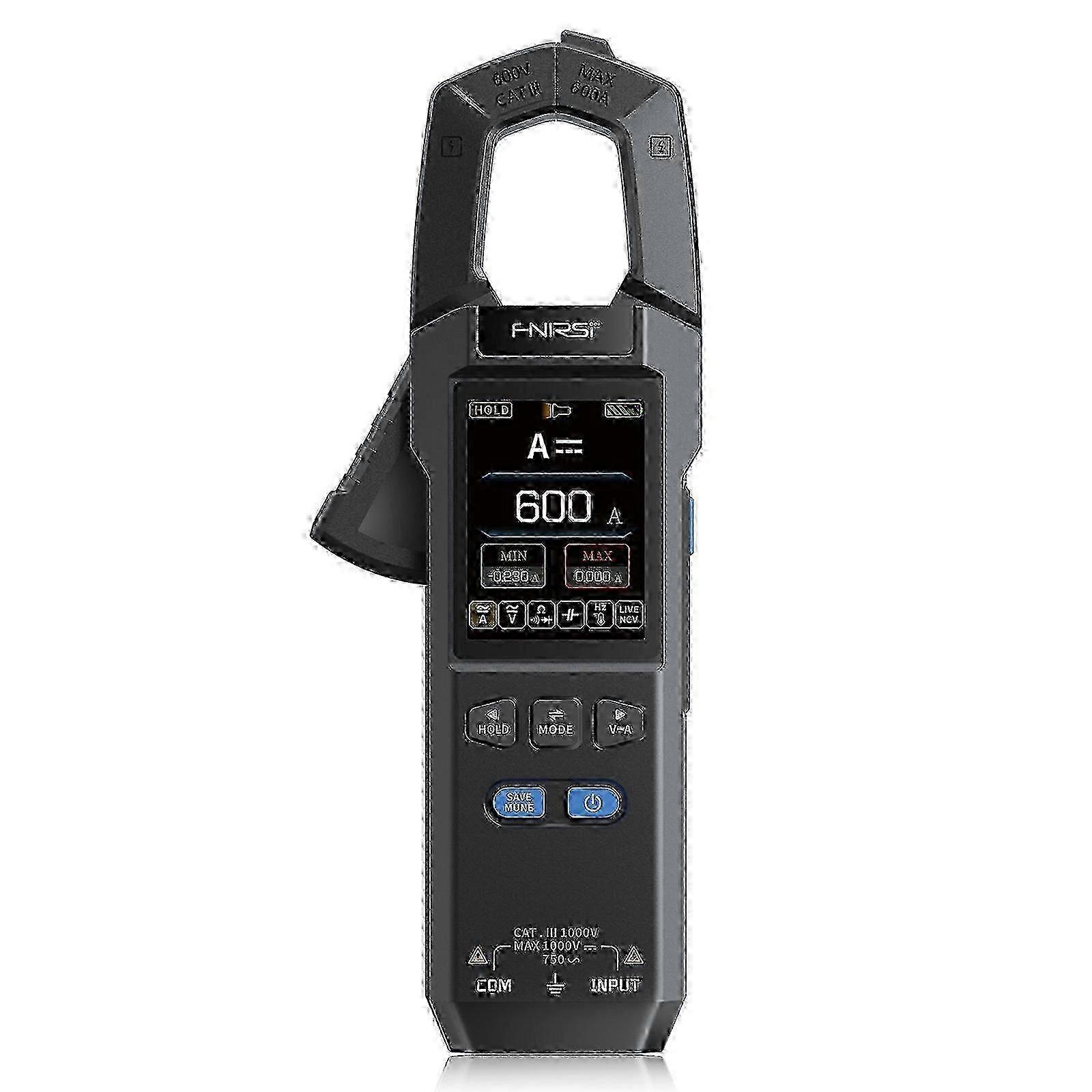

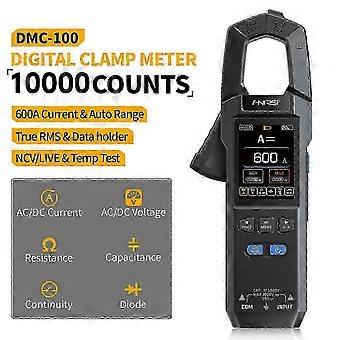

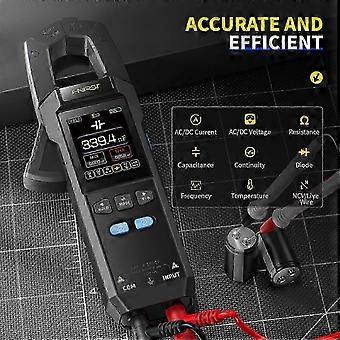

Product Description FNIRSI DMC-100 is a 10,000-count high-precision intelligent clamp meter, covering 750V voltage and 600A current ultra-wide range, whether it is engineering maintenance, laboratory research, or vehicle overhaul, home electrical diagnostics, can be easy to handle. Equipped with a 2.0-inch 240 x 320 full-color TFT screen, the new UI and data curve intuitive presentation, so that readings at a glance. Routine measurement, waveform display, power measurement of the three modes of switching at will, with 3.7V 1500mAh long-lasting battery, lasting battery life. NCV non-contact power measurement, zero fire line identification, temperature -55 - 1300 wide range of measurement and other powerful features, supplemented by flashlight, screen backlight, data saving and other thoughtful design, Type-C interface to achieve charging and data transmission double convenient. Intelligent automatic shutdown, temperature unit free switching, brightness adjustable, firmware upgradeable, DMC-100, your indispensable electronic maintenance all-round assistant! Product Parameters Main Speci cations of the Device ModelDMC-100 clamp multimeter Maximum size of jaws: 25mm Screen: 2.0'' TFT color screen Screen resolution240 x 320 pixels Battery capacity: 3.7V, 1500mAh battery Charging specification: USBType-C, 5V or 1A Product weight: 194g Product size: 193x74x32mm Measurement parameters DC voltage: 9.999V or 99.99V or 999.9V AC voltage: 9.999V or 99.99V or 750.0V DC current or AC current: 99.99A or 600.0A Resistance: 99.99M or 9.999M or 999.9K or 99.99K or 9.999K or 999.9 Capacitance: 9.999mF or 99.99mF or 999.9F or 99.99F or 9.999F or 999.9nF or 99.99nF or 9.999nF Frequency: 9.999MHz or 999.9KHz or 99.99KHz or 9.999KHz or 999.99Hz or 99.99Hz or 9.999Hz Temperature: -55-1300 or -67-2372 Diode Measurement: On-off test: Non-Contact Voltage Check (NCV): Zero Fire Wire Check: Other Functions Measuring Mode 1: general measurement Measuring Mode 2: waveform display Measuring Mode 3: power measurement Measurement gear: manual adjustment Torch: Support Data Zeroing: Support Maximum or Minimum Value: Support Waveform display: Support Power Calculation: Support Data Hold: Support Data Storage and Viewing: Up to 30 groups of data Language: Chinese or English Brightness Adjustment: 10-speed adjustment Temperature unit: or Auto Power Off: OFF or 5min or 15min or 30m Firmware Upgrade: Support Packing list 1 x DMC-100 Clamp Multimeter 1 x Multimeter Pen 1 x Temperature Probe 1 x Packing box 1 x Instruction Manual
